Fully Automatic Microtome

About Fully Automatic Microtome

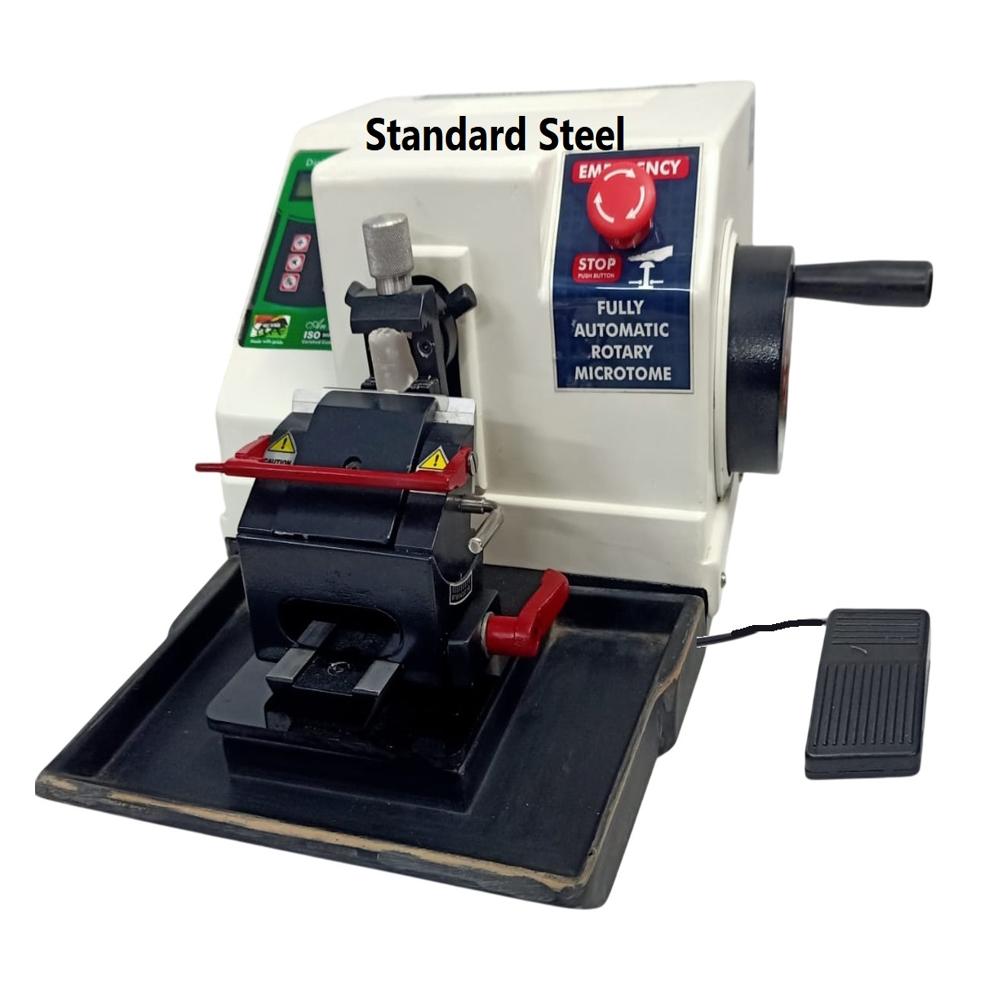

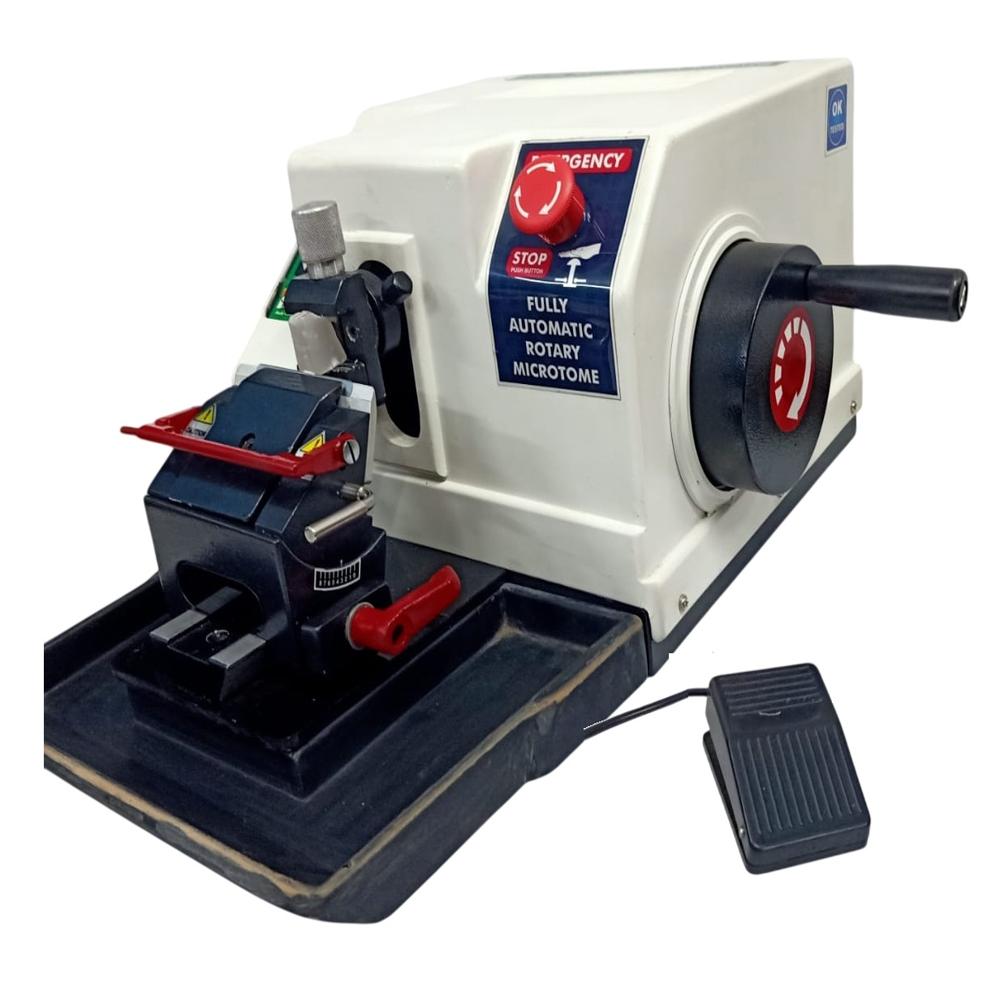

Fully Automatic Microtome

Model No SS1011

Brand :- Standard Steel

Specification: The Fully Automatic Microtome Provides almost reliability, use benefit and outstanding operator comfort great basic stability and precision microtome a real multipurpose instrument that meets the requirements both in paraffin and hard sectioning techniqueof the biological medical Industrial Lab.

Silent feature

       The Fully Automatic Microtome is motorized and manual sectioning provides

       Reproducible high Quality section.

       Adopted Germany Motor drive ensure slice more precisely more reliable and quit.

       The LCD Screen shows slice and trimming thickness section counter keyboard with controls thickness mode and speed.

       Speacial function of specimen retraction which avoids the damage due to the attrition between sample and back of knife.

       That the sectioning is more smooth and the life of the knife is more long.

       Mode of blade holder for high low profile disposable blades.

       The waste tray can be disassembled easily.

       Greaseless and Gearless microtome.

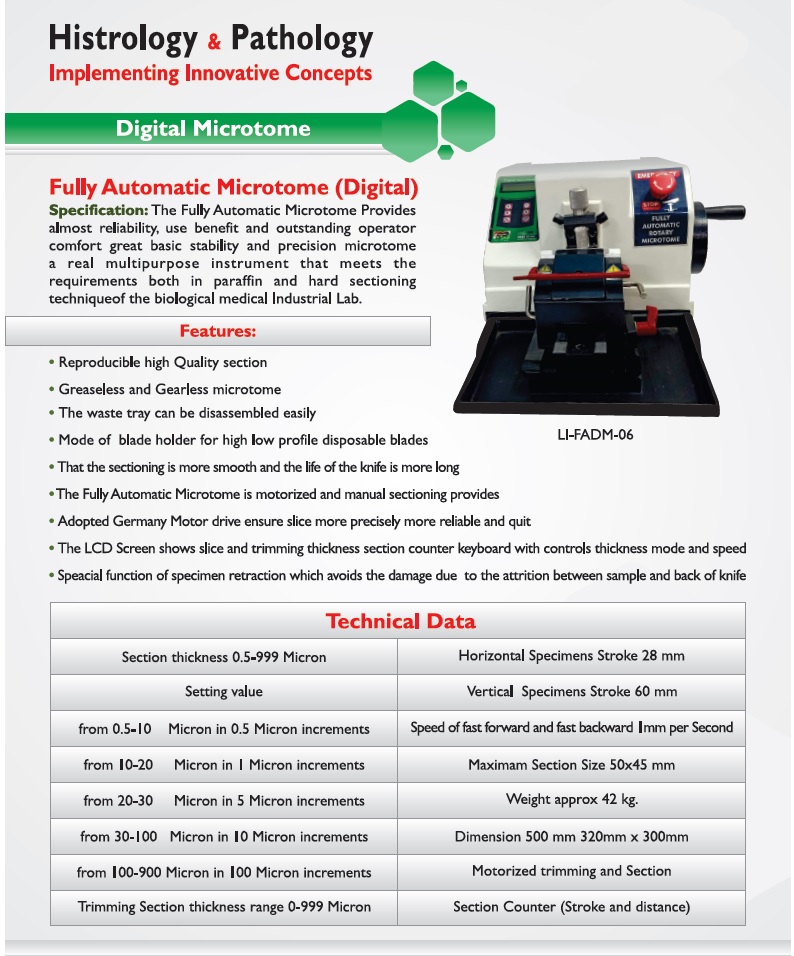

Technical Data

       Section thickness 0.5-999 Micron : - Horizontal Specimens Stroke 28 mm.

       Setting value : - Vertical Specimens Stroke 60 mm.

       from 0.5-10 Micron in 0.5 Micron increments: - Speed of fast forward and fast backward 1mm per Second.

       from 10-20 Micron in 1 Micron increments : - Maximam Section Size 50x45 mm.

       from 20-30 Micron in 5 Micron increments :- Weight approx 42 kg.

       from 30-100 Micron in 10 Micron increments: - Dimension 500 mm 320mm x 300mm.

       from 100-900 Micron in 100 Micron increments: - Motorized trimming and Section.

       Trimming Section thickness range 0-999 Micron: -Section Counter (Stroke and distance).
